High-Power 5-Channel DMX512 & RDM Decoder for RGB+CCT Lighting Control

Overview: Precision DMX512 & RDM Control

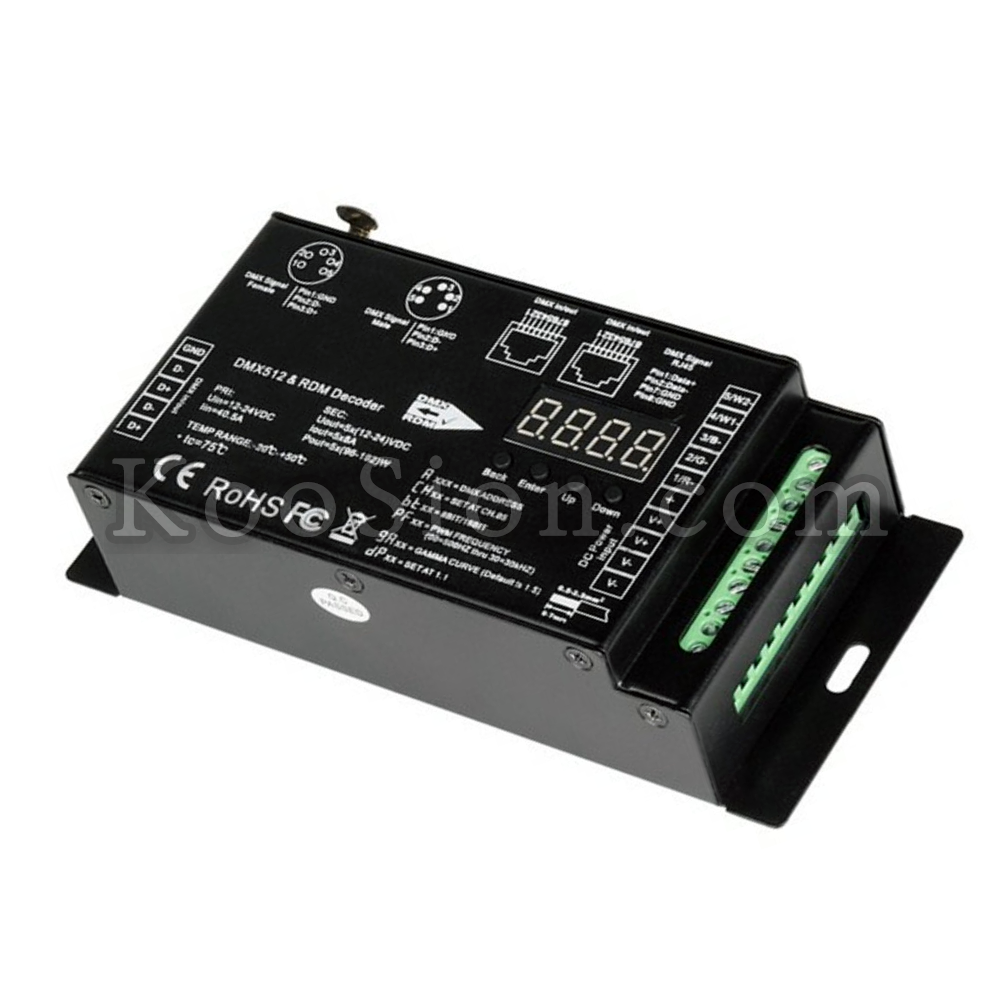

The KooSion DMX512 & RDM Decoder is a high-performance solution designed for complex lighting systems. With 5 output channels and full RDM support, it allows for seamless control of RGB+CCT fixtures, providing engineers with the flexibility to manage large-scale installations with ease.

Key Features:

• RDM Bidirectional Support: Remotely set DMX addresses and monitor device status via RDM-enabled consoles, drastically reducing labor costs during installation.

• 5-Channel Versatility: Optimized for RGB+CCT (Red, Green, Blue, Cool White, Warm White) applications with a powerful 8A per channel output.

• Flicker-Free Dimming: Advanced high-frequency PWM ensures smooth transitions and is 100% invisible to video cameras, meeting the demands of high-end retail and broadcast studios.

• Robust Connectivity: Features standardized XLR-3, RJ45, and high-current Screw Terminals for secure and flexible wiring.

Technical Specifications:

• Protocol: DMX512 / RDM

• Input Voltage: DC 12V-24V

• Max Output: 5 Channels x 8A (Total 40A)

• Connectivity: XLR-3, RJ45, Terminal Blocks

• Protection: Short circuit, Over-temperature, and Over-current protection

Ideal Applications:

• Building Facades & Landmark Lighting

• Luxury Hotel Ballrooms & Lobbies

• Professional Stage & Television Studios

• Synchronized Color-Changing Architectural Projects
